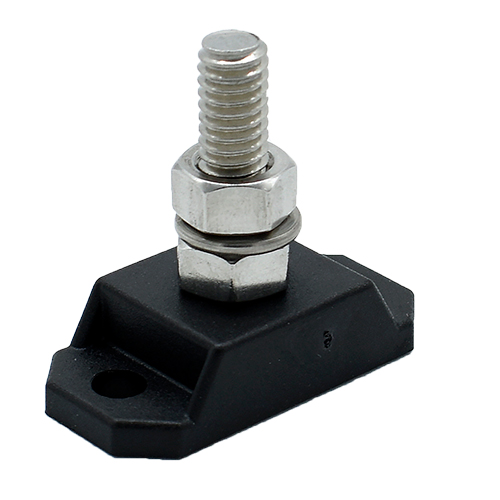

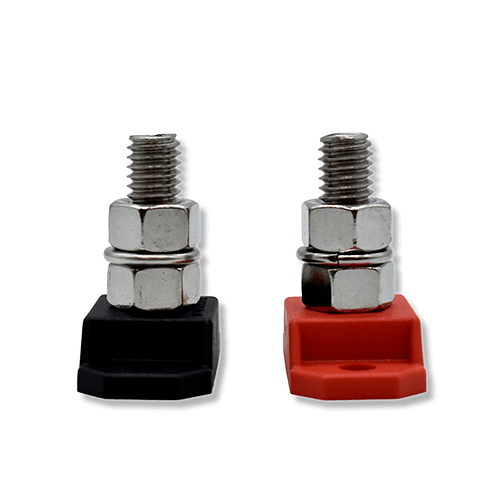

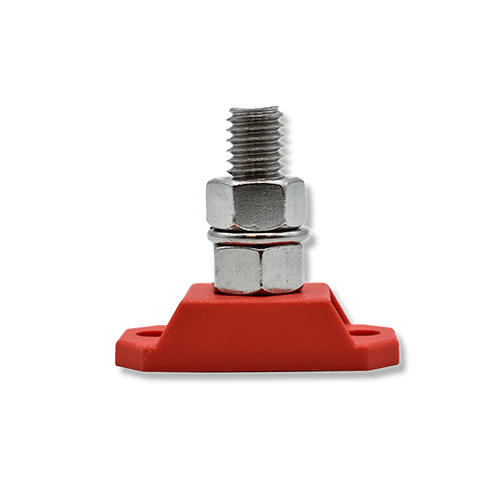

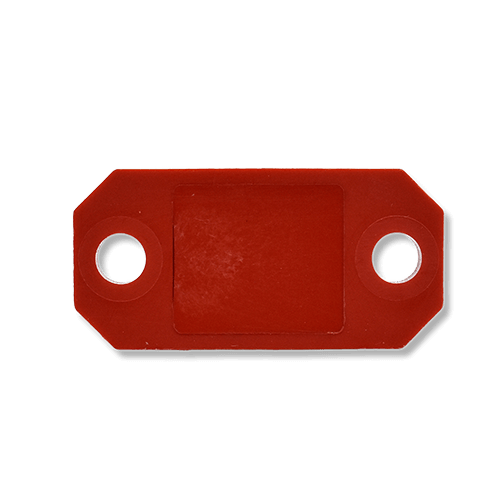

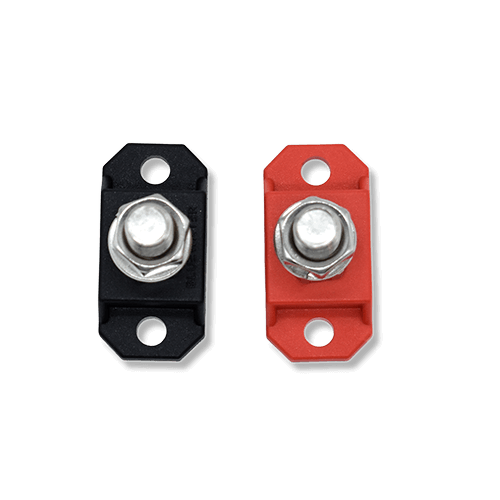

5/16″ Power Post

This Power Post is great for consolidating negative power lines. It also gives you the opportunity to extend powerlines, or split them into different locations.

  • Power Post part #:
  • 314300-B-056 (BLACK)

Specifications

Maximum Voltage 48VDC Terminal Type 5/16″ Stud
Continuous Rating 250 Amps Dimensions View Dimensional Drawings
Terminal Studs 1 Material Red Polycarbonate, Black PolycarbonateTin-Plated Copper
Spec Sheet

Installation

Mount with (2) 1/4″ screws.
