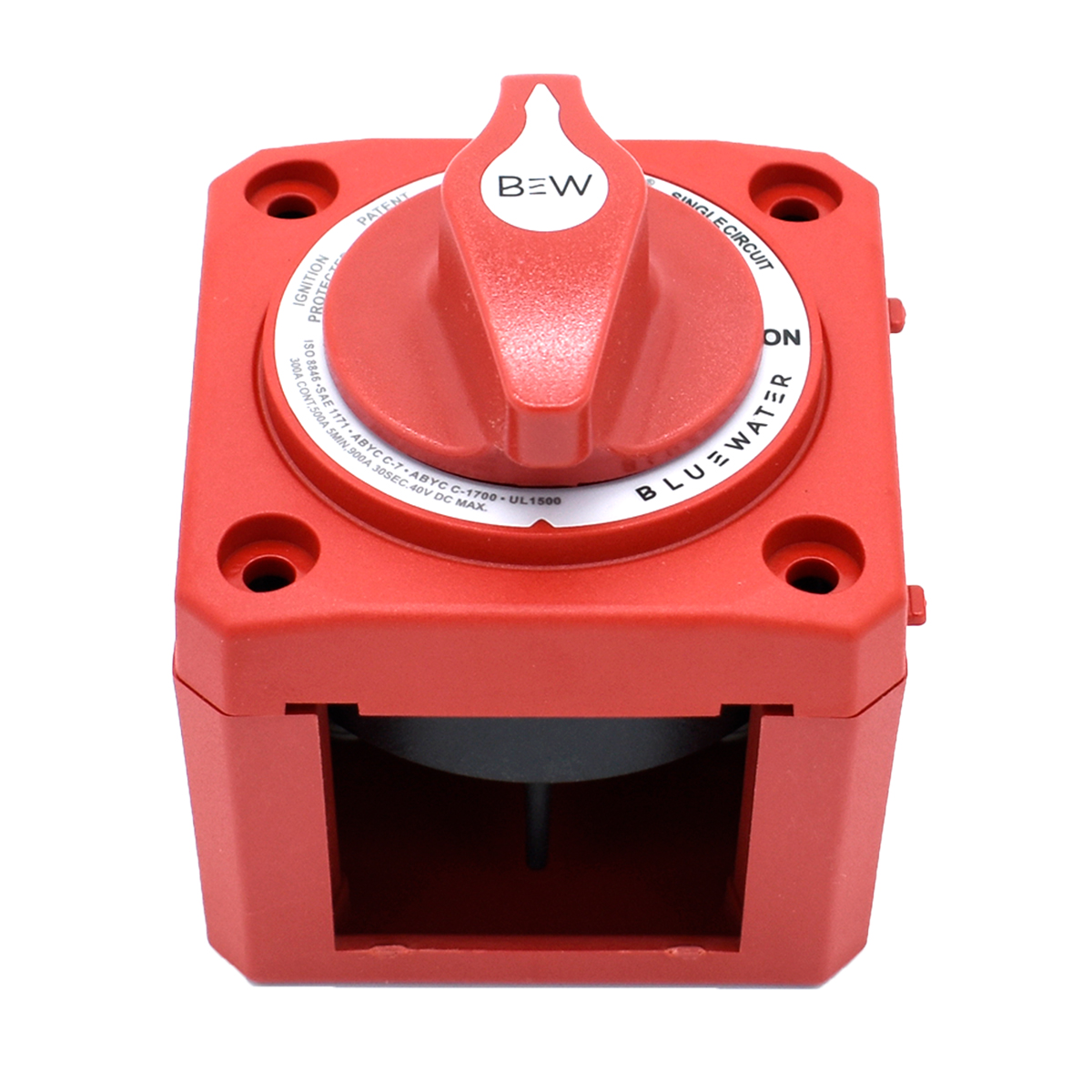

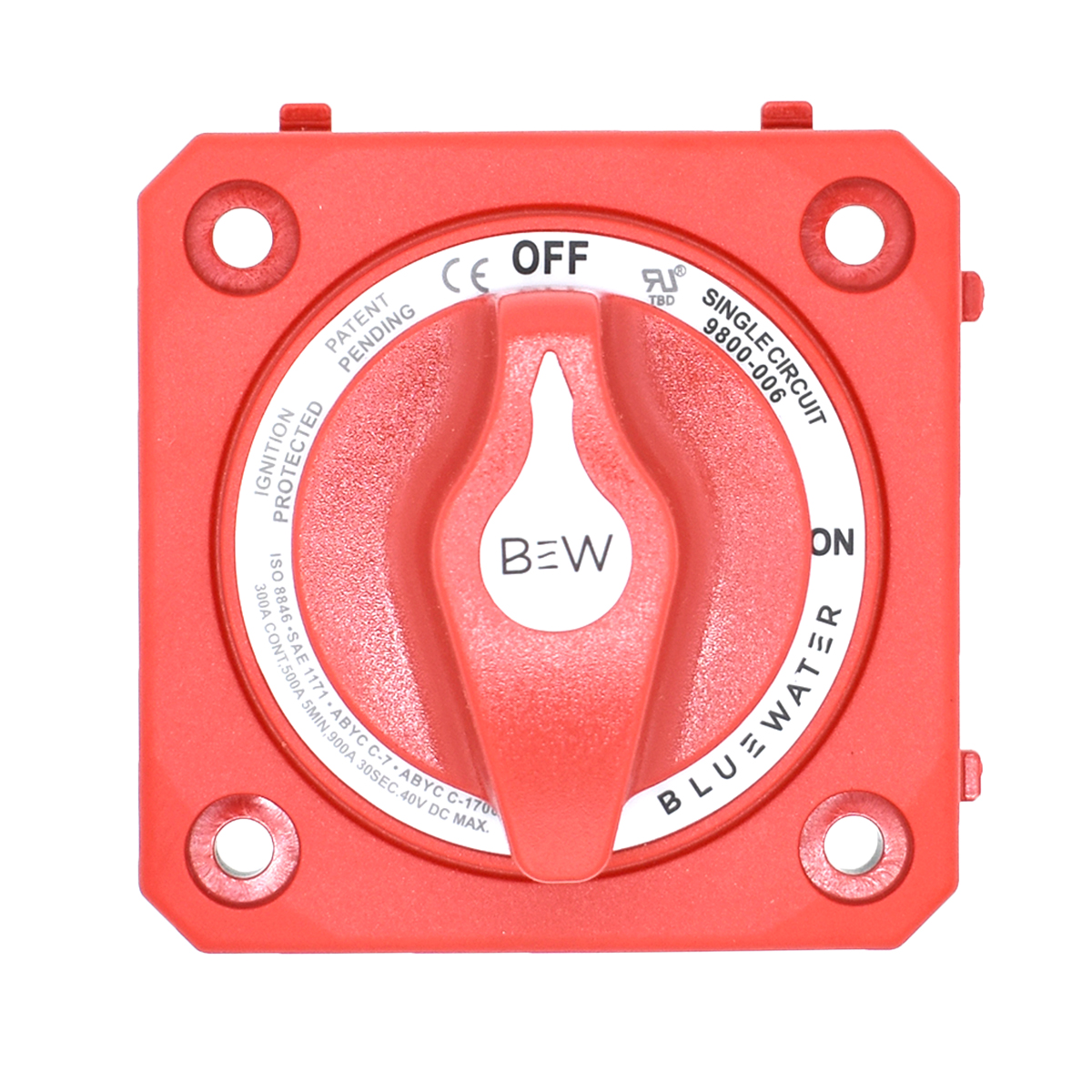

On/Off Single Circuit Battery Switch

6-10 top view jpg
6-11
IMG_0314b
6-10 top view jpg
6-11
IMG_0314b
previous arrow
next arrow

9800-006-10 (Panel Mount)

9800-006-11 (Surface Mount)

MSRP $38.00

  • Ignition protected – Safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
  • 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
  • 7/8″ (22.22mm) stud length to accept multiple cable terminals
  • Ideal for marine or RV applications
  • All non-corrosive marine grade metals
  • Molded in durable reinforced polycarbonate
  • Tactile textures indicate knob position by feel only
  • Label with international ON/OFF legends
  • ICON label set included for circuit identification

Specifications

Installation

N/A

3D Model
