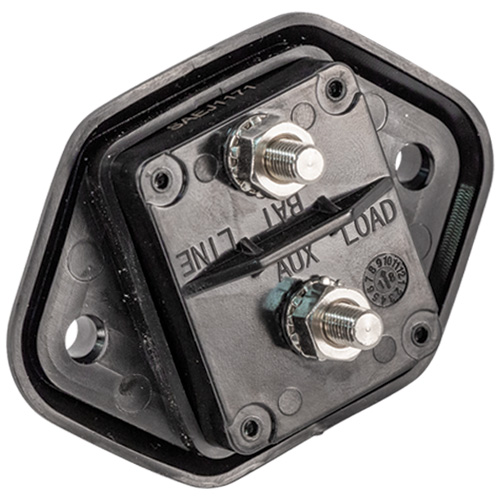

High AMP Circuit Breaker – Panel Mount

hi_amp_circuit_breaker_panel1
hi_amp_circuit_breaker_panel2
hi_amp_circuit_breaker_panel1
hi_amp_circuit_breaker_panel2
previous arrow
next arrow

Circuit Breakers

MSRP $XX.XX

This Panel Mount High Amp is typically used in auxiliary and accessory circuits for trucks, buses, RVs and boat applications.

Available as:
  • Auto-Reset
  • Manual-Reset

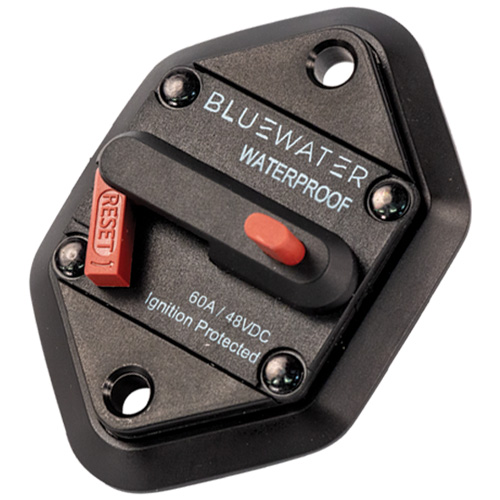

  • Switchable/Manual (pictured)

Specifications

Max Voltage 32VDC; 48VDC Interrupting Capacity 30 – 150A; 3KA at 14VDC
Max Current 30 – 250A 30 – 150A; 3KA at 48VDC
Features Color-coded per amperage ratings 30 – 150A; 3KA at 30VDC
Material Thermoplastic/
Nickel-Plated Copper		 160 – 250A; 3KA at 14VDC
160 – 300A; 3KA at 48VDC
Max Voltage 32VDC; 48VDC
Max Current 30 – 250A
Material Thermoplastic/
Nickel-Plated Copper
Max Interrupting Capacity 30 – 150A; 3KA at 14VDC
30 – 150A; 3KA at 48VDC
30 – 150A; 3KA at 30VDC
160 – 250A; 3KA at 14VDC
160 – 300A; 3KA at 48VDC
Spec Sheet

Installation

Use 1/4″ Lugs to connect your cable to the circuit breaker.
