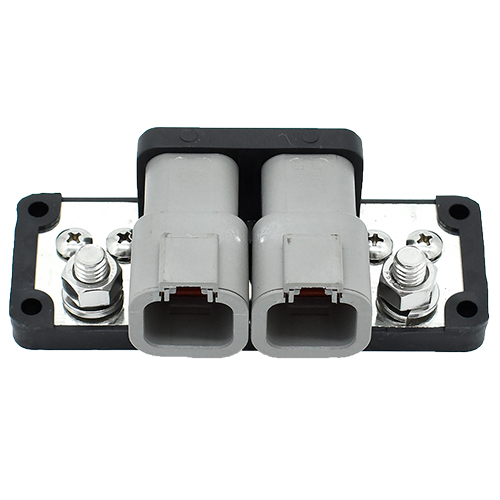

Sealed Dual DTP Busbar

This Dual DTP style sealed busbar makes bussing all of your grounds together simple. It has 8 male DTP pins capable of taking 10-14 AWG wire. It easily connects with two female DTP06-4S saving you time and labor cost. This Busbar has two stud options 1/4″ and 5/16″.

  • DTP Busbar Part#:
  • 2324-D-056

Specifications

Maximum Voltage 48VDC Terminal Type 1/4″ or 5/16″ Studs Number of Positions 8 Male Positions
Continuous Rating 200 Amps Dimensions View Dimensional Drawings Sealing Protection IP68
Terminal Studs 2 Material Polyamide, RETPU OvermoldedTin-Plated Copper
Spec Sheet

Installation

Mount with (4) 1/4″ screws.
