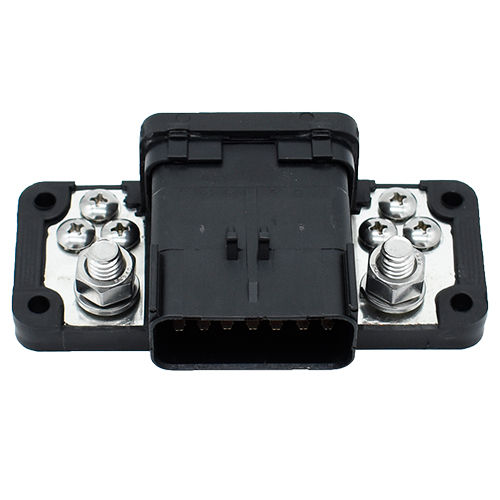

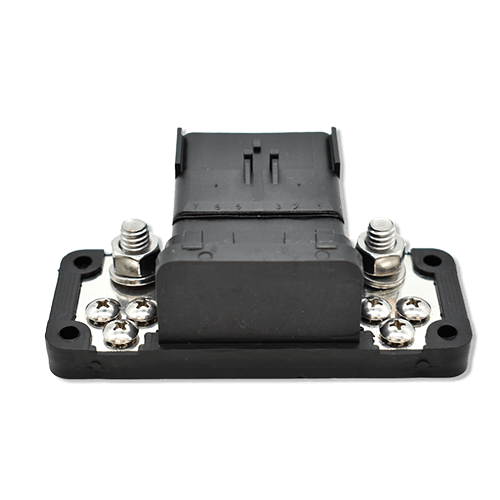

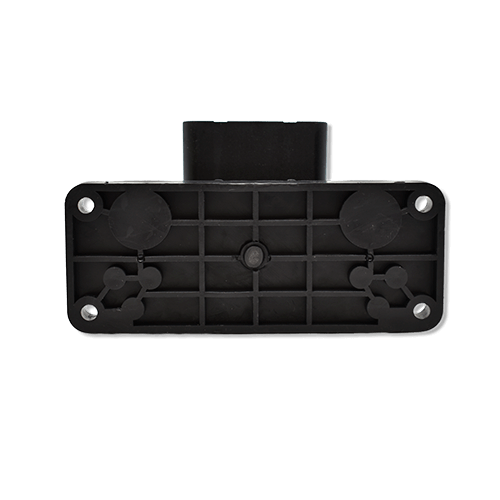

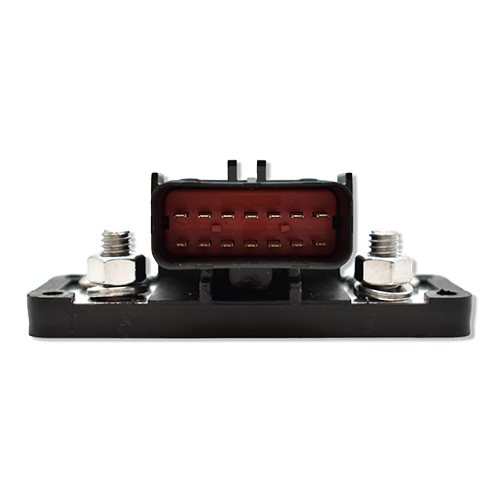

Sealed FCI Busbar

The FCI Busbar simplifies grounding your wires, with 14 different connections, ranging from 20AWG to 12AWG. This busbar has an IP68 rating keeping your connections dry and safe.

  • FCI Busbar part #:
  • 2314-B-000 (Dual Stud)
  • 2314-B-001 (Single Stud)

Specifications

Maximum Voltage 48VDC Terminal Type 3/8″ Studs Number of Positions 14 Male Positions
Continuous Rating 150 Amps Dimensions View Dimensional Drawings Sealing Protection IP68
Terminal Studs 1, 2 Material Polyamide, RETPU OvermoldedTin-Plated Copper
Spec Sheet

Installation

Mount with (4) 1/4″ screws.
