Heavy Duty Busbar

busbar_terminal_block_style3
312315-b-205
312315-B-104
previous arrow
next arrow

MSRP $XX.XX

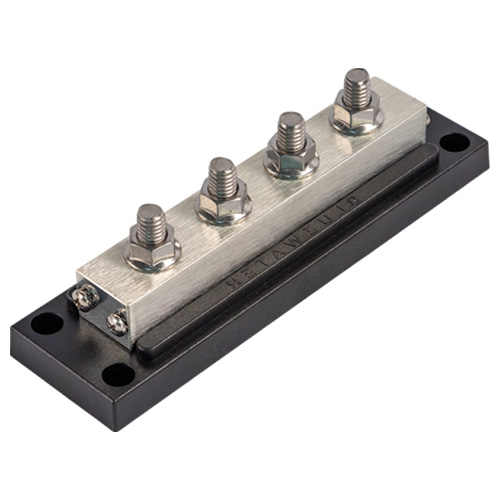

  • Heavy Duty Busbar Terminal Block
  • Hi-Amp Rated to 600 Amp
  • 3/8-16 Stud Size Stainless Steel
  • Mounting Holes take 1/4″ Screws
  • Busbar Part # 312315-B-004

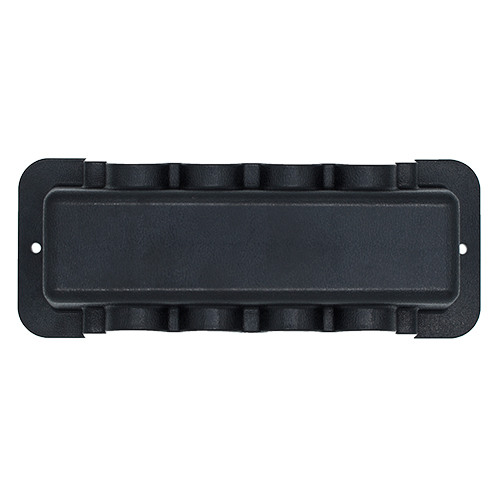

  • Cover Part #: 312315-B-104 (Black)

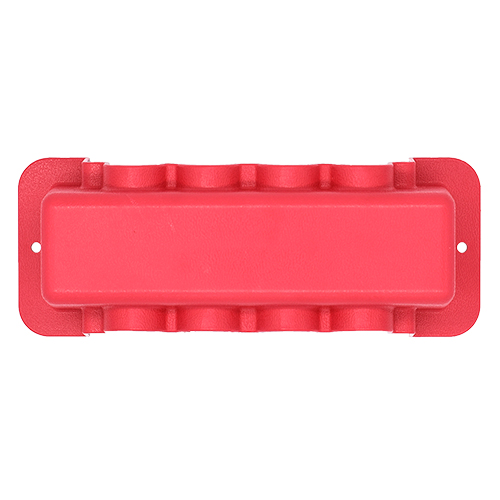

  • Cover Part #: 312315-B-205 (Red)

Specifications

Maximum Voltage 300V/48VDC Terminal Type 3/8″ – 16 Stud
Continuous Rating 545 – 600A Dimensions View Dimensional Drawings
Terminal Studs 4 Material Reinforced Polycarbonate/
Tin-Plated Copper
Maximum Voltage 300V/48VDC
Continuous Rating 545 – 600A
Terminal Type 3/8″ – 16 Stud
Terminal Studs 4
Dimensions View Dimensional Drawings
Material Reinforced Polycarbonate/
Tin-Plated Copper
Spec Sheet

Installation

Mount with 4 1/4″ screws.
